TPM16R200M60.0E10SA

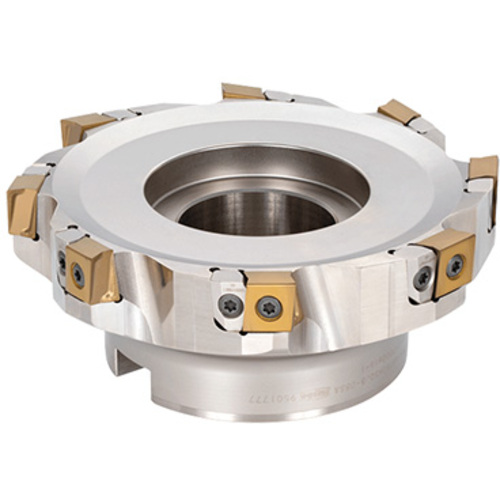

Indexable Face Mill; 200 mm Dia. × 60 mm Shank Dia. × 63 mm OAL × 15.1 mm LOC ; 10 Inserts

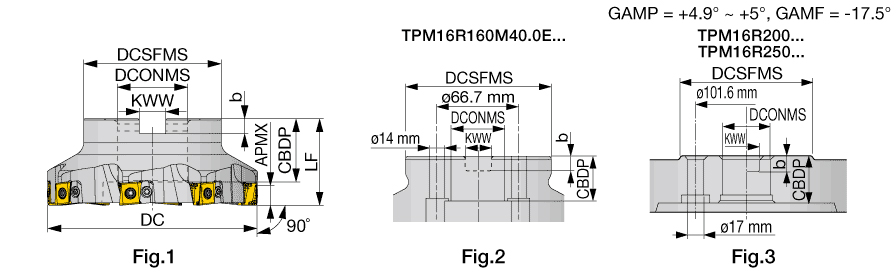

| Cutting Diameter (DC/DCX) | 200 mm | Master Insert Identification (MIID) | LMMU160908PNER-MJ |
| Cutting Diameter (DC) | 200 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 200 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 15.1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm |
Product Features
| Family Description | Square shoulder mill for LMMU double-sided tangential inserts, with shims for extra reliability | Country of Origin | JAPAN |
