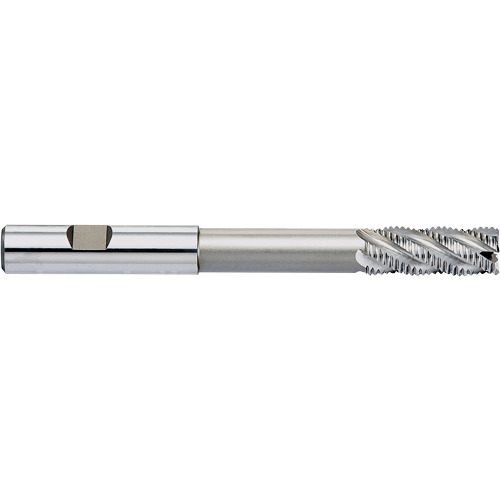

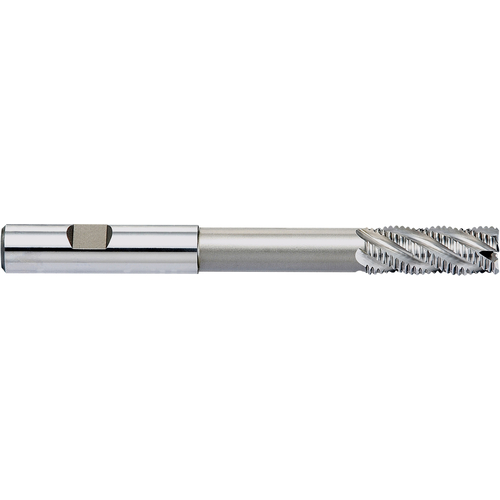

Square End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 6-1/8″ OAL ; 5 FL ; HSS-PM ; TiAlN ; Series E9921
SQ End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 6-1/8″ OAL ; 5 FL ; 4″ LBS ; HSS-PM ; TiAlN ; Series E9921
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 4″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Center Cut |
| Overall Length (OAL) | 6-1/8″ | Flute Type | Roughing |
| Cutting Edge Material | HSS-PM | Decimal Equivalent | 0.625″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | E9921 |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.5
Package Width
1
Package Height
1
Package Weight
0.49
