TAN07R100M31.7-10

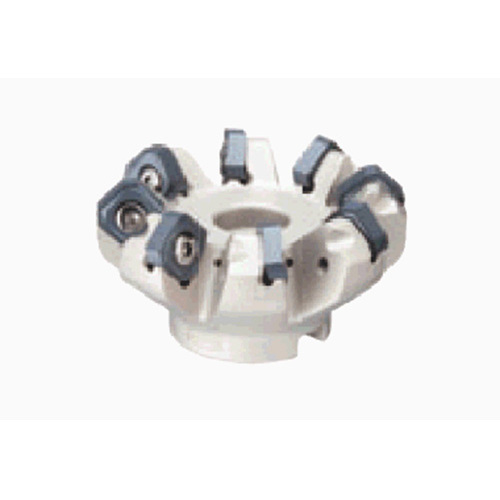

Indexable Face Mill; 113 mm Dia. × 31.75 mm Shank Dia. × 50 mm OAL × 7.5 mm LOC ; 10 Inserts
| Cutting Diameter (DC/DCX) | 113 mm | Master Insert Identification (MIID) | ONMU0705ANPN-MJ |
| Cutting Diameter (DC) | 100 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 113 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 7.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | 45 Facemills |
Product Features
| Family Description | 45deg screw clamp type face mills with double sided octagonal or square inserts. | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
4.129
