TPO07R200U0075A12

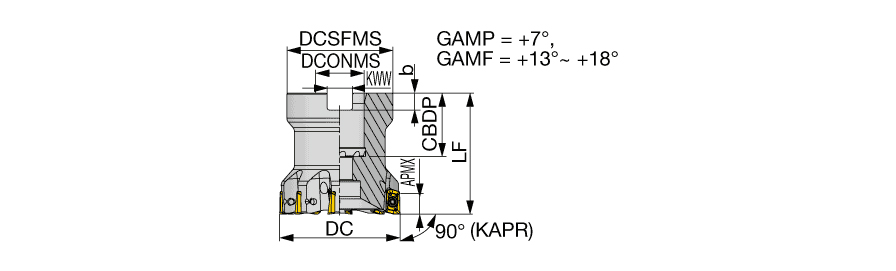

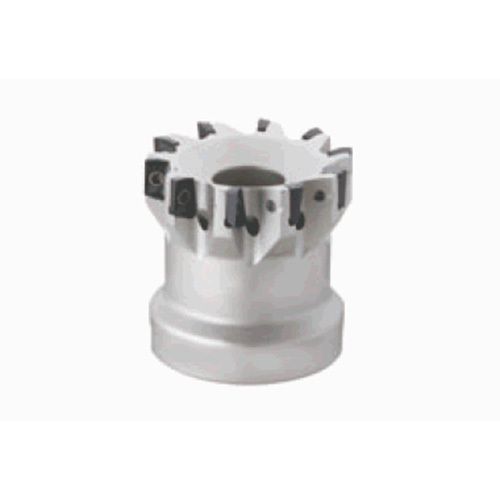

Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.575″ OAL × 0.276″ LOC ; 12 Inserts
| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | AOMT070204PDPR-MJ |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 12 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.276″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ | Tool Type | 90 Facemills |
Product Features
| Family Description | High precision shoulder square mills with AOMT/AOGT07 inserts | Country of Origin | Japan |
| Remarks | The DC in the above table shows the diameter when MJ and AJ chipbreakers are used. When HJ chipbreaker is used, the tool diameter is equal to the above shown DC + 0.6 mm. The LF in the above table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the lengths are equal to LF + 0.1 mm. When HJ chipbreaker is used, the lengths are equal to LF + 0.5 mm. APMX may vary with insert type. |
Shipping Info
Package Weight
0.831
