TPQ18R080M25.4-05

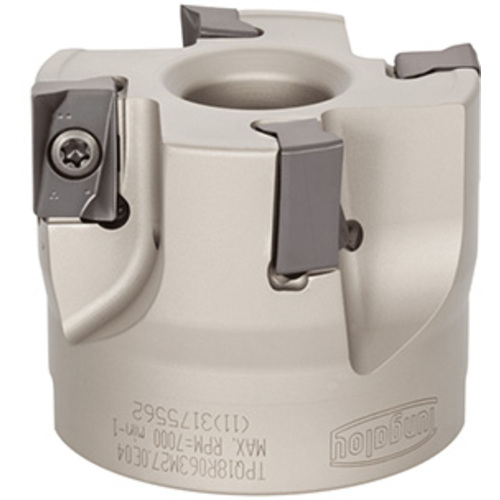

Indexable Face Mill; 80 mm Dia. × 25.4 mm Shank Dia. × 50 mm OAL × 16 mm LOC ; 5 Inserts

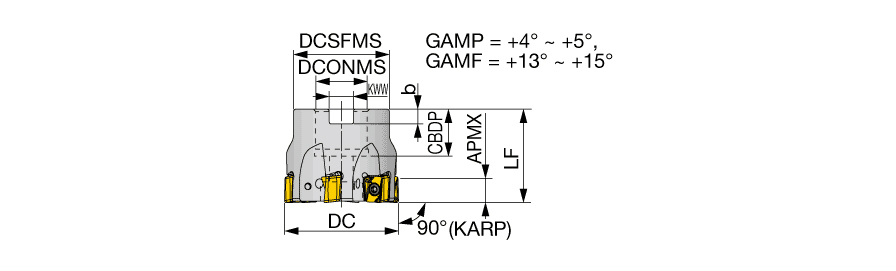

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | LQMU180808PNER-MJ |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 16 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | Square shoulder mills with double sided tough inserts with 4 edges | Country of Origin | JAPAN |
Shipping Info
Package Weight
2.597
