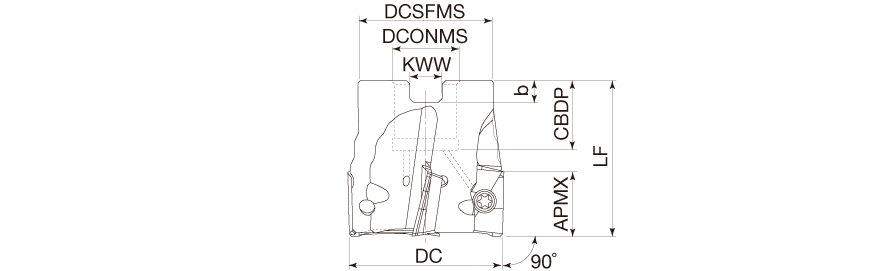

TPS17300RBU
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1.969″ OAL × 0.63″ LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | ASMT170508PDPR-MJ |
| Cutting Diameter (DC) | 3″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 3″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.63″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Functional Length (LF) | 1.968″ |
| Overall Length (OAL) | 1.969″ | Tool Type | 90 Facemills |
Product Features
| Family Description | Shoulder square mills with ASMT/ASGT17 inserts, suitable formulti perpose machining | Country of Origin | Japan |
Shipping Info
Package Weight
2.73
