TPS11400RBU

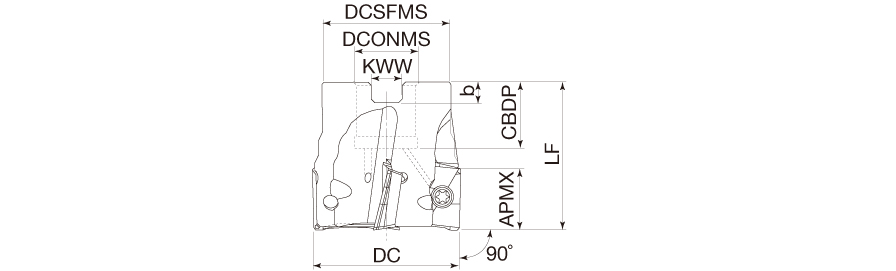

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2.48″ OAL × 0.417″ LOC ; 11 Inserts
| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | ASMT11T304PDPR-MJ |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 11 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.417″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2.48″ |
| Overall Length (OAL) | 2.48″ | Tool Type | 90 Facemills |
Product Features
| Family Description | High precision shoulder square milling cutters with ASMT/ASGT11 inserts | Country of Origin | Japan |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
2.64
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
