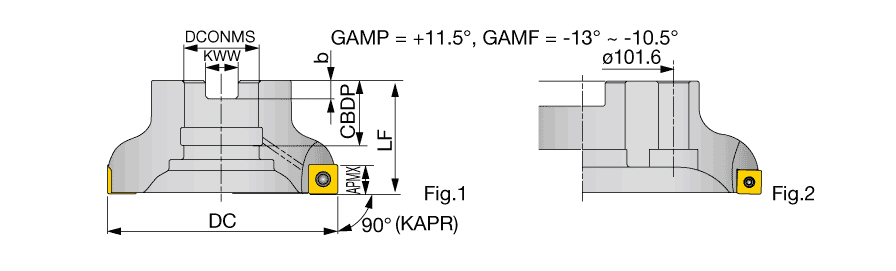

TPW13R200M47.6-10
Indexable Face Mill; 200 mm Dia. × 47.625 mm Shank Dia. × 63 mm OAL × 10 mm LOC ; 10 Inserts
| Cutting Diameter (DC/DCX) | 200 mm | Master Insert Identification (MIID) | SWMT1304PDPR-MJ |
| Cutting Diameter (DC) | 200 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 200 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 10 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 47.625 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | Square shoulder mills with screw clamped SWMT/SWGT13 inserts. | Country of Origin | JAPAN |
Shipping Info
Package Weight
16.160
