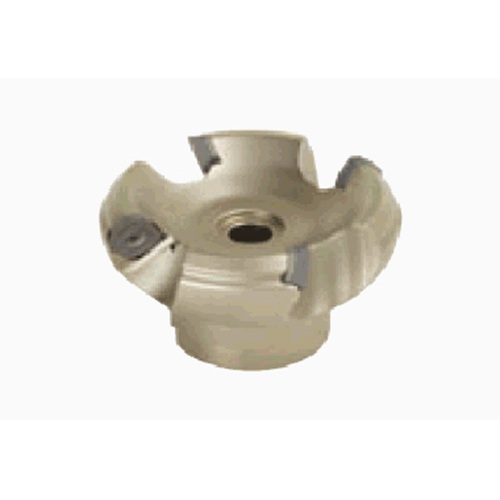

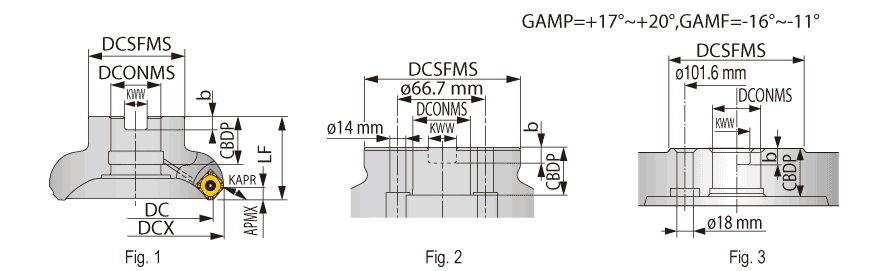

TAW13R063M22.0-04
Indexable Face Mill; 76 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 5 mm LOC ; 4 Inserts
| Cutting Diameter (DC/DCX) | 76 mm | Master Insert Identification (MIID) | SWMT13T3AFPR-MJ |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 76 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | 45 Facemills |
Product Features
| Family Description | 45deg face mills with screw clamped SWMT/SWGT13 inserts. | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. Please see "More Info". |
Shipping Info
Package Weight
1.623
