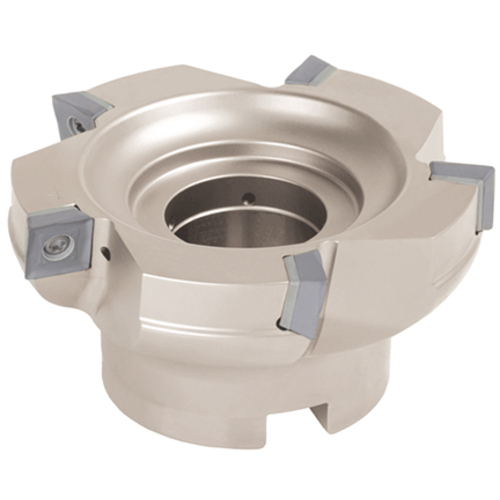

TPW13R200U0075A05
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.575″ OAL × 0.394″ LOC ; 5 Inserts

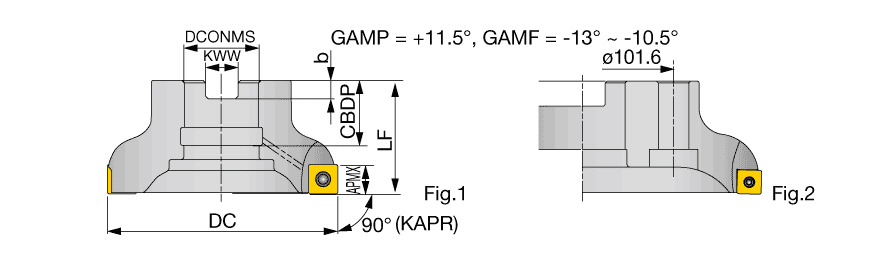

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | SWMT1304PDPR-MJ |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.394″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ | Tool Type | 90 Facemills |
Product Features
| Family Description | Square shoulder mills with screw clamped SWMT/SWGT13 inserts. | Country of Origin | Japan |
Shipping Info
Package Weight
1.136
