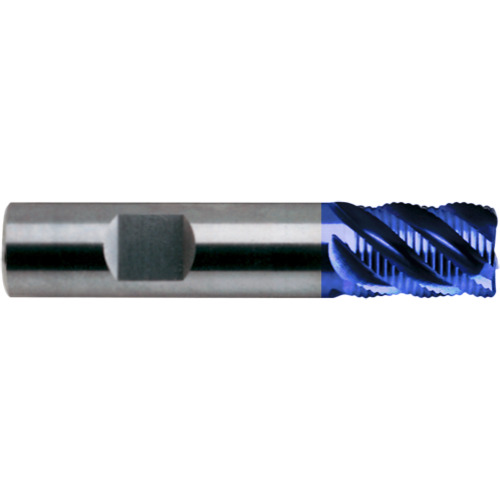

Corner Radius End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; TiCN ; Series E5056
SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 0.04″ RE ; 5 FL ; Carbide ; TiCN ; Series E5056
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.04″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Center Cut |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | E5056 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.242
