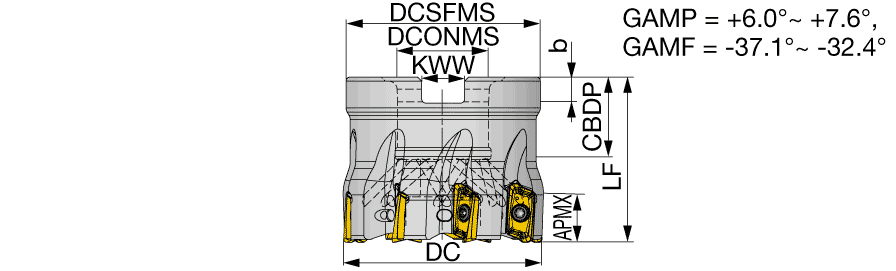

TPAV12M063B22.0R14
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 11.5 mm LOC ; 14 Inserts
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | AVMT120408PDER-MM |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 14 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 11.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm |
Product Features
| Family Description | Square shoulder mill, bore type, with screw clamp system | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0.000
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
