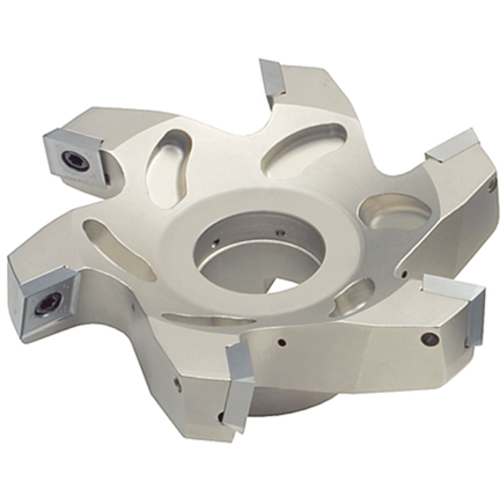

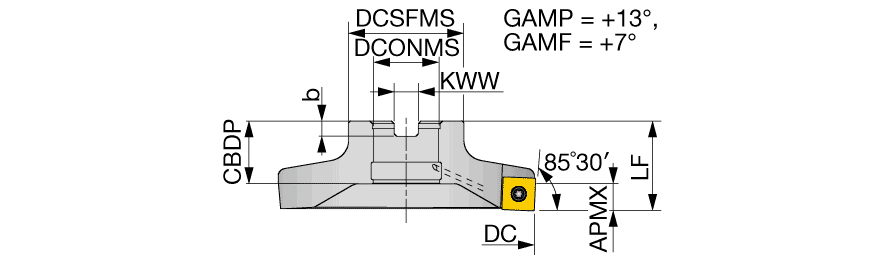

TFE12125R
Indexable Face Mill; 126.9 mm Dia. × 25.4 mm Shank Dia. × 35 mm OAL × 8 mm LOC ; 6 Inserts

| Cutting Diameter (DC/DCX) | 126.9 mm | Master Insert Identification (MIID) | SEGW12X4ZEFR |
| Cutting Diameter (DC) | 125 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 126.9 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Functional Length (LF) | 35 mm |
| Overall Length (OAL) | 35 mm | Tool Type | 90 Facemills |

Product Features
| Family Description | 85.5 deg face mills with screw clamped inserts for aluminum machining | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
3.080
