TPS17040RB

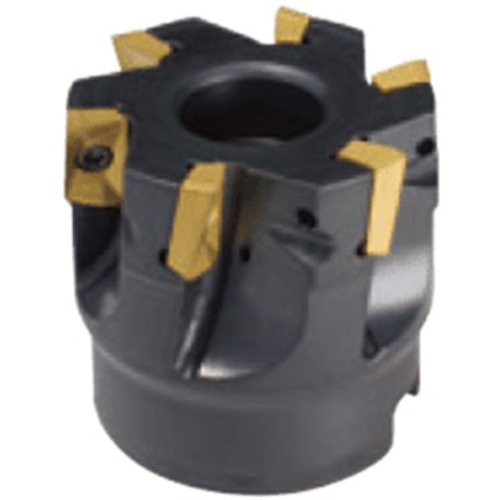

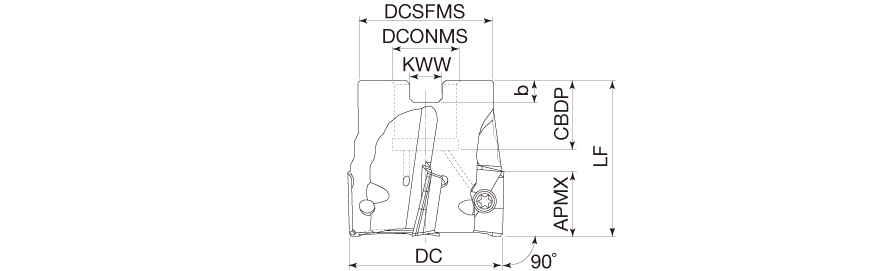

Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 16.2 mm LOC ; 4 Inserts
| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | ASMT170508PDPR-MJ |
| Cutting Diameter (DC) | 40 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 16.2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | Shoulder square mills with ASMT/ASGT17 inserts, suitable formulti perpose machining | Country of Origin | Japan |
Shipping Info
Package Weight
0.666
