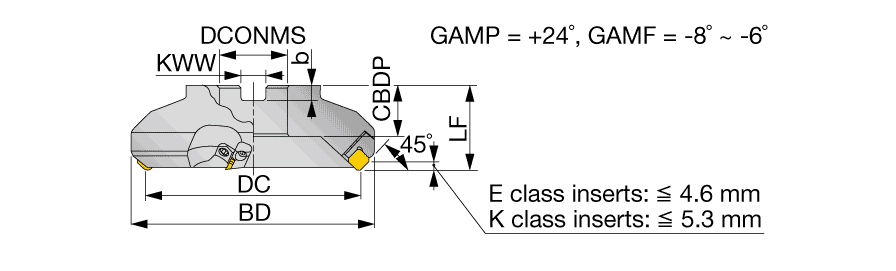

TME4404LI

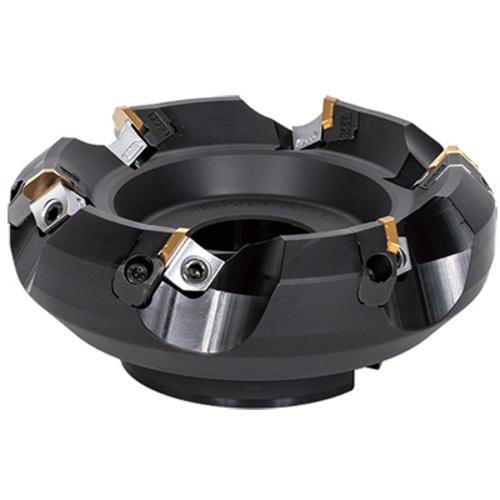

Indexable Face Mill; 100 mm Dia. × 31.75 mm Shank Dia. × 63 mm OAL × 4 mm LOC ; 5 Inserts
| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | SEEN42AGTN |
| Cutting Diameter (DC) | 100 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 120.2 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Item Count (CICT) | 5 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | 45 Facemills |
Product Features
| Family Description | 45 deg face mills with wedge clamped high-posi square inserts | Country of Origin | JAPAN |
| Remarks | Cutting edge height (LF) is for when SEEN1203AG*N type inserts are used. |
Shipping Info
Package Weight
6.812
