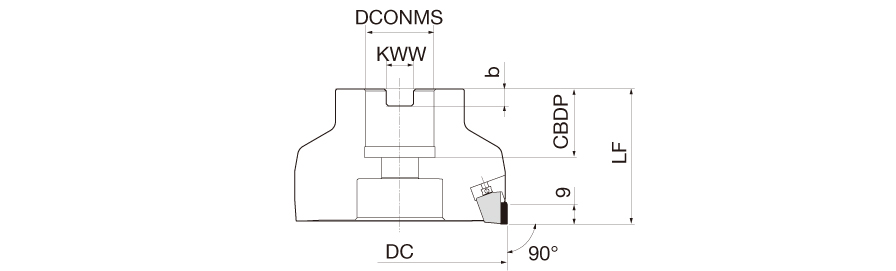

DPD24080R
Indexable Face Mill; 80 mm Dia. × 25.4 mm Shank Dia. × 50 mm OAL × 7 mm LOC ; 4 Inserts
| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | YDEN2405PDFR-D |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 7 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | 90 Facemills for Al. & HTA |
Product Features
| Family Description | High precision shoulder square mills with PCD inserts for aluminum machining | Country of Origin | JAPAN |
Shipping Info
Package Weight
3.168
