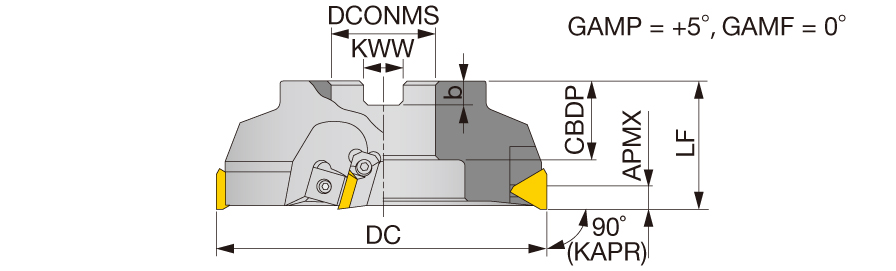

TSP4003RIA-U

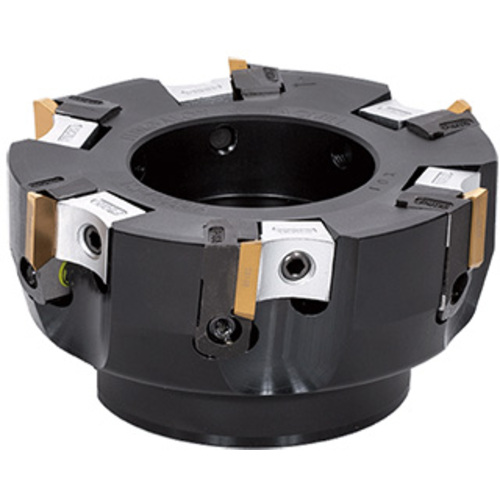

Indexable Face Mill; 3.15″ Dia. × 1″ Shank Dia. × 1.97″ OAL × 0.394″ LOC ; 4 Inserts
| Cutting Diameter (DC/DCX) | 3.15″ | Master Insert Identification (MIID) | TPKN43ZTR |
| Cutting Diameter (DC) | 3.15″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 3.15″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.394″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Functional Length (LF) | 1.97″ |
| Overall Length (OAL) | 1.97″ | Tool Type | 90 Facemills |
Product Features
| Family Description | Shoulder square mills with wedge clamped 11deg relief triangle inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
3.064
