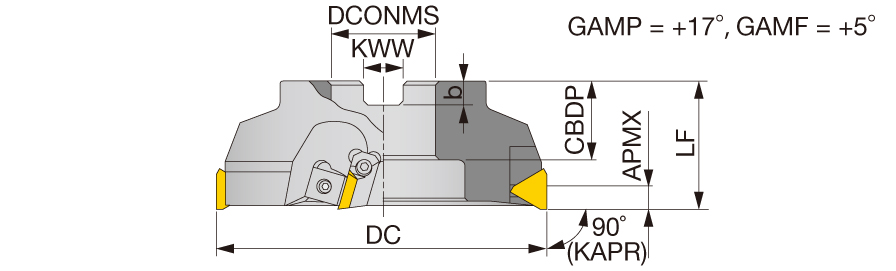

TSE4004RIA-U
Indexable Face Mill; 3.937″ Dia. × 1-1/2″ Shank Dia. × 2.48″ OAL × 0.394″ LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 3.937″ | Master Insert Identification (MIID) | TEEN43ZTR |
| Cutting Diameter (DC) | 3.937″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 3.937″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.394″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2.48″ |
| Overall Length (OAL) | 2.48″ | Tool Type | 90 Facemills |
Product Features
| Family Description | Shoulder square mills with wedge clamped high-posi triangle inserts | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. |
Shipping Info
Package Weight
5.423
