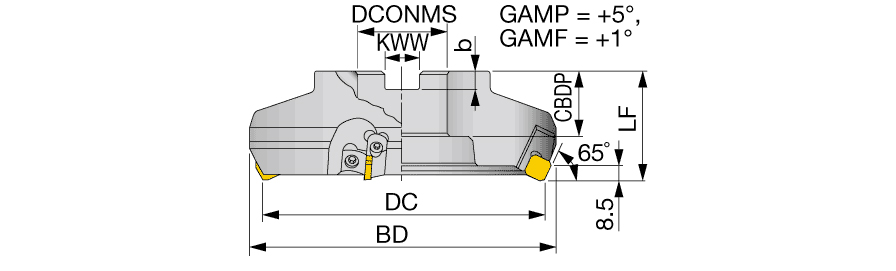

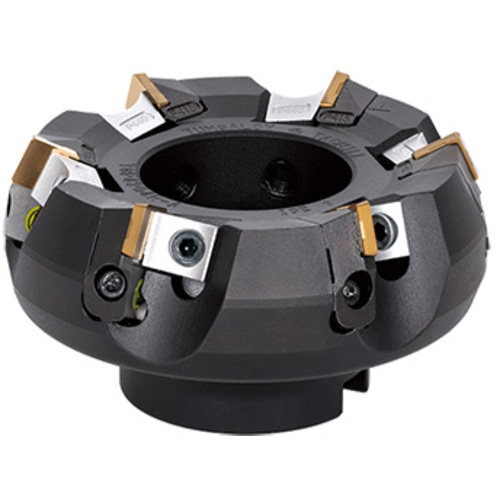

TGP4203R-A
Indexable Face Mill; 80 mm Dia. × 25.4 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 5 Inserts
| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | SPKN42ZTR |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 95 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | 75 Facemills |
Product Features
| Family Description | 65 deg face mills with wedge clamped square inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
3.851
