TGD4405R-A

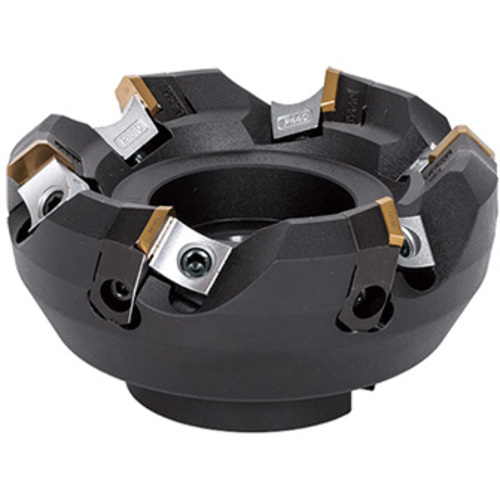

Indexable Face Mill; 125 mm Dia. × 38.1 mm Shank Dia. × 63 mm OAL × 4 mm LOC ; 8 Inserts

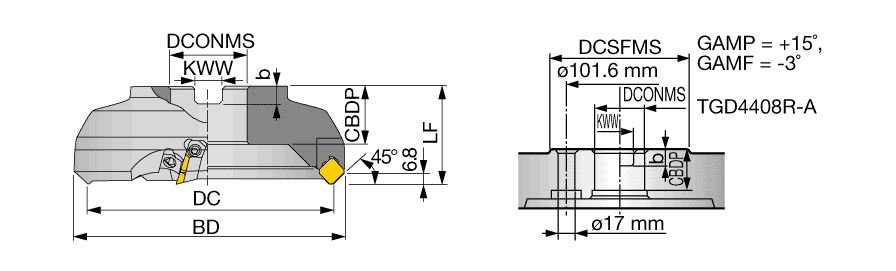

| Cutting Diameter (DC/DCX) | 125 mm | Master Insert Identification (MIID) | SDEN42ZTNCR |
| Cutting Diameter (DC) | 125 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 139 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | 45 Facemills |
Product Features
| Family Description | 45 deg face mills with wedge clamped square inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
8.841
