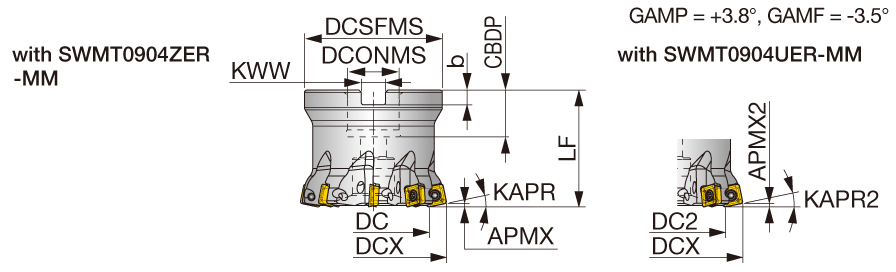

TXSW09U4.00B1.50R08
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2.48″ OAL × 0.059″ LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | SWMT0904ZER-MM |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 0.059″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2.48″ |
| Overall Length (OAL) | 2.48″ | Tool Type | Fast Feed Endmill |
Product Features
| Family Description | High-feed milling cutters with 4-corner single sided inserts; Bore type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
0.000
