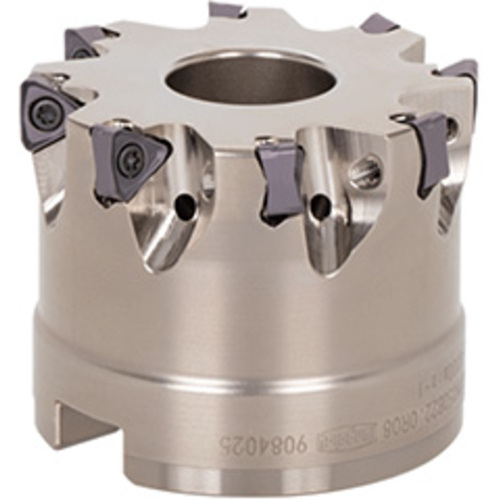

TPTN07U2.00B0.75R08
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.575″ OAL × 0.256″ LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | TNMU070308PER-MJ |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.256″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Bore Type | Country of Origin | Japan |
| Remarks | When using corner radius R0.4 inserts, add 0.22 mm to the LF and LH dimensions. |
Shipping Info
Package Weight
1.566
