EPYD06U2.00C1.25R08

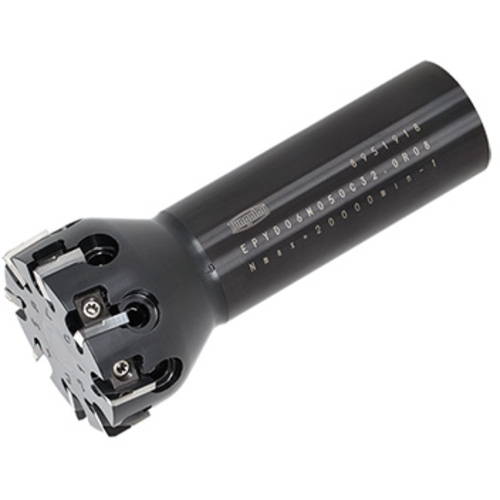

Indexable Face Mill; 2.079″ Dia. × 1-1/4″ Shank Dia. × 4-1/2″ OAL × 0.177″ LOC ; 8 Inserts

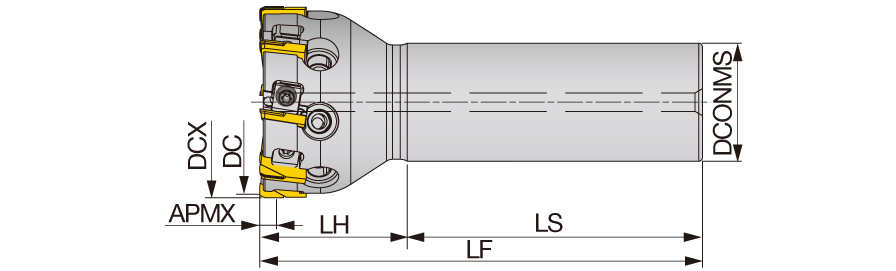

| Cutting Diameter (DC/DCX) | 2.079″ | Master Insert Identification (MIID) | YDEN0603PDSR-D |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2.079″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 0.177″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Functional Length (LF) | 4-1/2″ |
| Overall Length (OAL) | 4-1/2″ | Tool Type | 90 Facemills |
Product Features
| Family Description | Wedge clamp type face milling cutters with PCD inserts for machining non-ferrous metal, Shank type | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
