THSN12M080B27.0R05

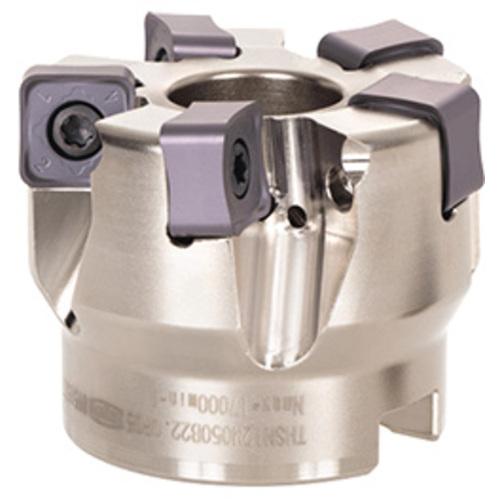

Indexable Face Mill; 80.6 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 9.5 mm LOC ; 5 Inserts

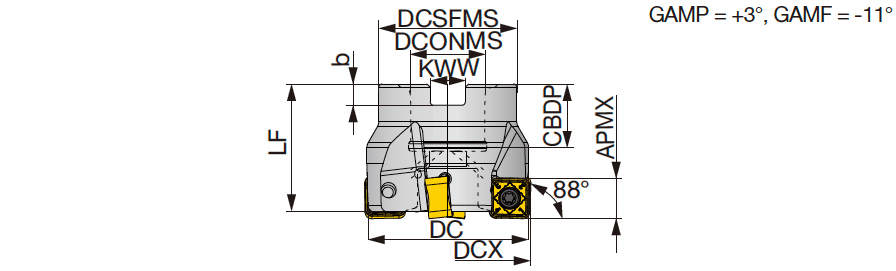

| Cutting Diameter (DC/DCX) | 80.6 mm | Master Insert Identification (MIID) | SNMU120608HNEN-MM |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 80.6 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 9.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm |
Product Features
| Family Description | 88 deg screw clamp type face mills with double sided square inserts. | Country of Origin | JAPAN |
