TPYD06M080B27.0R16
Indexable Face Mill; 82 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 4.5 mm LOC ; 16 Inserts

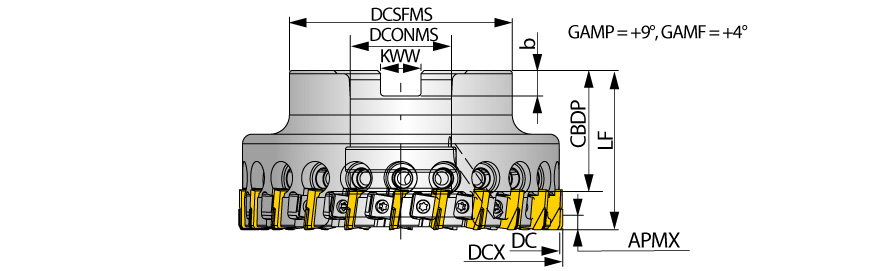

| Cutting Diameter (DC/DCX) | 82 mm | Master Insert Identification (MIID) | YDEN0603PDSR-D |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 82 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 16 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 4.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | Wedge clamp type face milling cutters with PCD inserts for machining non-ferrous metal, Bore type | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
