EPYD06M050C32.0R08

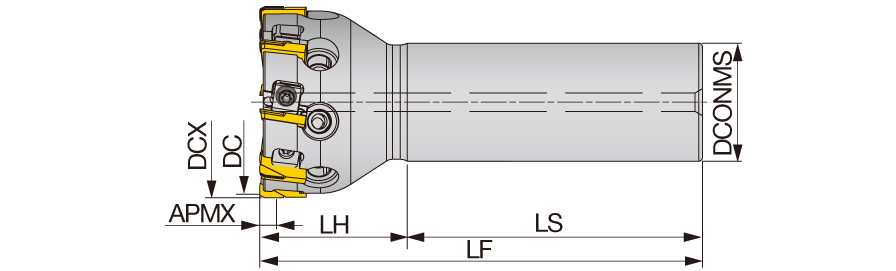

Indexable Face Mill; 52 mm Dia. × 32 mm Shank Dia. × 120 mm OAL × 4.5 mm LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 52 mm | Master Insert Identification (MIID) | YDEN0603PDSR-D |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 52 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 4.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Functional Length (LF) | 120 mm |
| Overall Length (OAL) | 120 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | Wedge clamp type face milling cutters with PCD inserts for machining non-ferrous metal, Shank type | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
