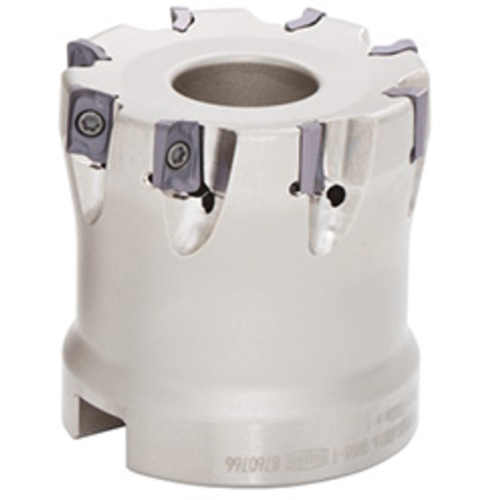

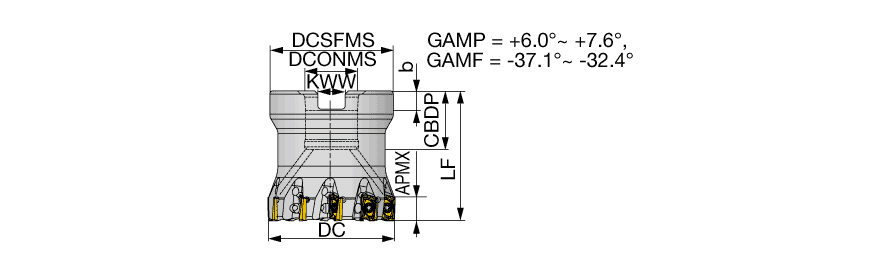

TPAV06M040B16.0R10
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 6 mm LOC ; 10 Inserts
| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | AVGT060304PBER-MJ |
| Cutting Diameter (DC) | 40 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | Square shoulder mill, bore type, with screw clamp system | Country of Origin | JAPAN |
| Remarks | Note: Inserts with a PCD or a corner radius of 0.0787″ or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0.778
