TXLN05M050B22.0R06

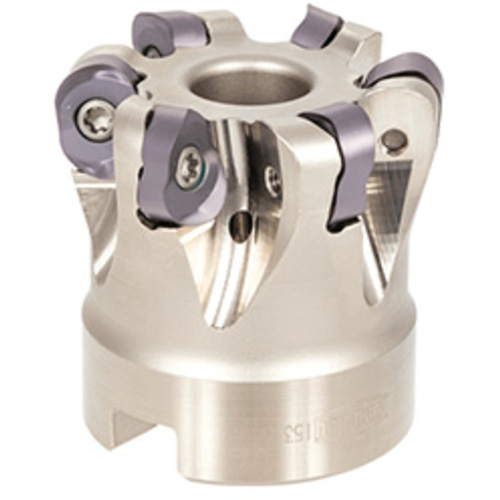

Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 5 mm LOC ; 6 Inserts

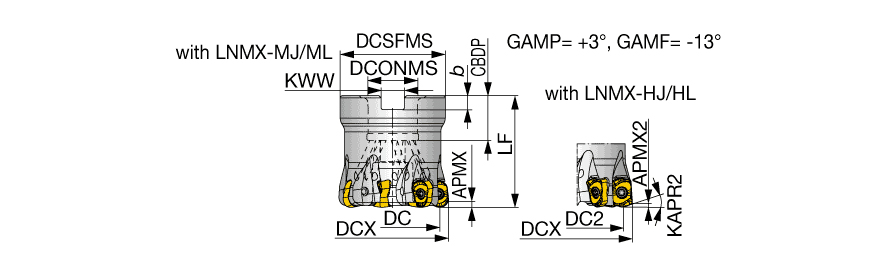

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | LNMX0506R5-MJ |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | High Feed Milling | Profile Milling | |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm |
Product Features
| Family Description | Radius cutter with double-sided insert; Bore type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
0.000
