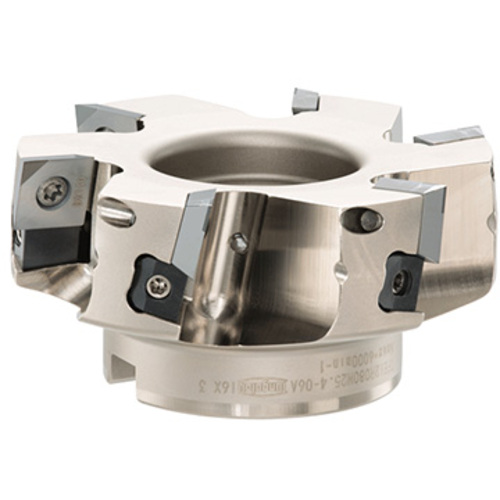

TFE12R080M25.4-06A
Indexable Face Mill; 81 mm Dia. × 25.4 mm Shank Dia. × 40 mm OAL × 8 mm LOC ; 6 Inserts

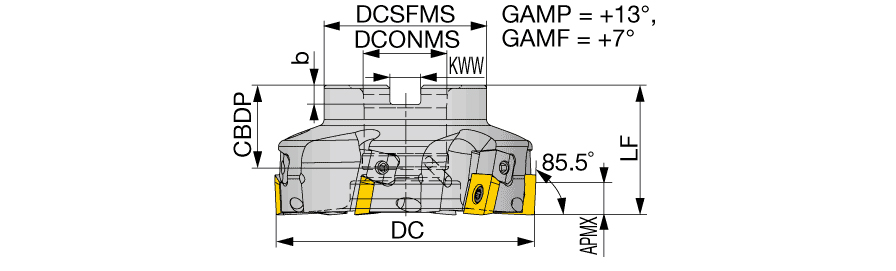

| Cutting Diameter (DC/DCX) | 81 mm | Master Insert Identification (MIID) | SEGW12X4ZEPR |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 81 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | 85.5 deg face mills for aluminum machining, with screw clamped inserts and adjustable pockets for axial runout | Country of Origin | Japan |
Shipping Info
Package Weight
2.254
