TPTC16U4.00B1.50R07

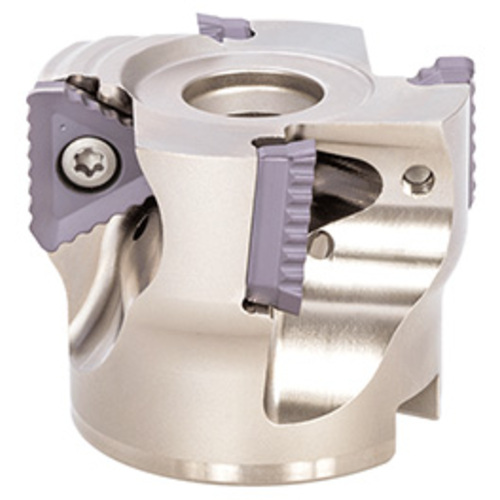

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.63″ LOC ; 7 Inserts

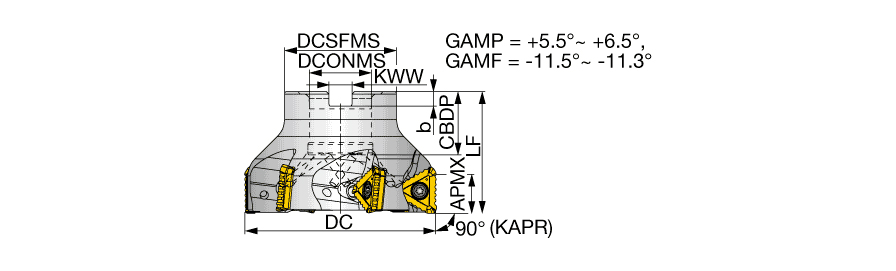

| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | TCMT160620PDER-NMJ |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 7 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.63″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2″ |
| Overall Length (OAL) | 2″ | Tool Type | CUTTER - SHANK TYPE |
Product Features
| Family Description | Square Shoulder milling cutters with shred insert; Bore Type | Country of Origin | JAPAN |
Shipping Info
Package Weight
3.527
