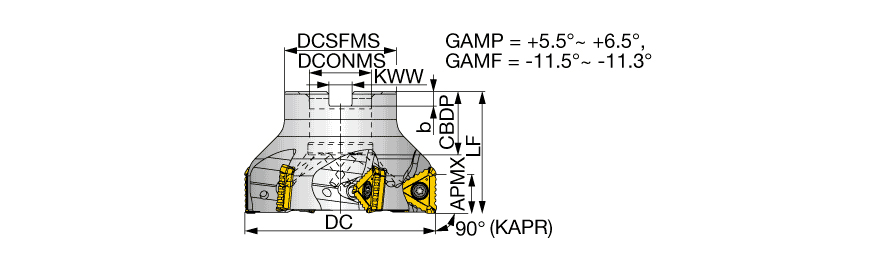

TPTC16M050B22.0R04
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 16 mm LOC ; 4 Inserts
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | TCMT160620PDER-NMJ |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 16 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | CUTTER - SHANK TYPE |
Product Features
| Family Description | Square Shoulder milling cutters with shred insert; Bore Type | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.864
