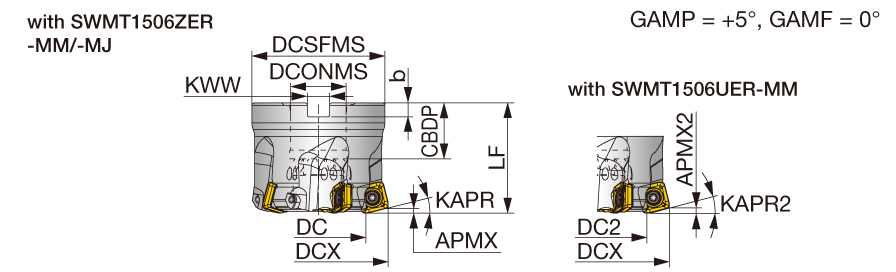

TXSW15U2.50B0.75R04
Indexable Face Mill; 2-1/2″ Dia. × 3/4″ Shank Dia. × 1.969″ OAL × 0.098″ LOC ; 4 Inserts
| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | SWMT1506ZER-MJ |
| Cutting Diameter (DC) | 2-1/2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 0.098″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.969″ |
| Overall Length (OAL) | 1.969″ | Tool Type | Fast Feed Endmill |
Product Features
| Family Description | Super high-feed milling cutter with large depth of cut; Bore type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
1.687
