TXSW15J100B31.7R06

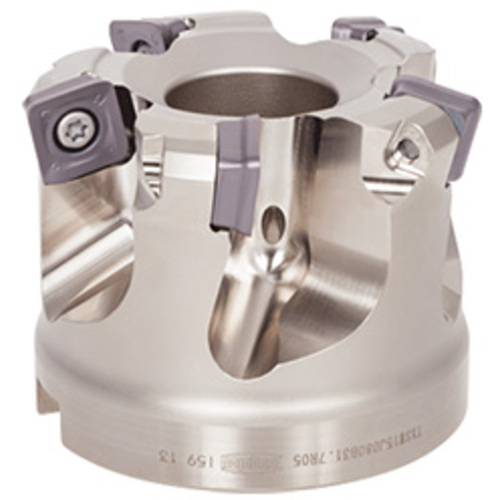

Indexable Face Mill; 100 mm Dia. × 31.75 mm Shank Dia. × 63 mm OAL × 2.5 mm LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | SWMT1506ZER-MJ |
| Cutting Diameter (DC) | 100 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 2.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | Fast Feed Endmill |
Product Features
| Family Description | Super high-feed milling cutter with large depth of cut; Bore type | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
5.512
