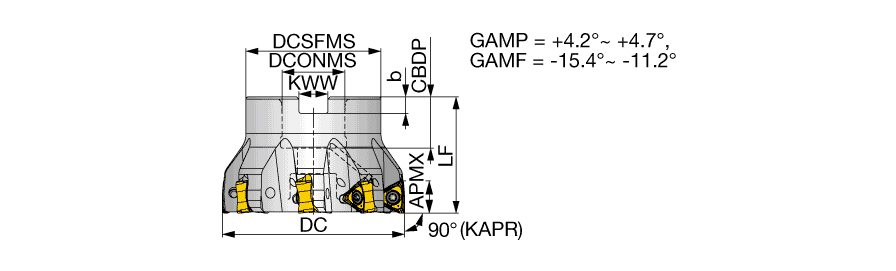

TPTN12M100B32.0R10
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 11 mm LOC ; 10 Inserts
| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | TNMU120708PER-MJ |
| Cutting Diameter (DC) | 100 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 11 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Bore Type | Country of Origin | JAPAN |
| Remarks | Subtract 0.1 mm (R1.6) or 0.23 mm (R2) to LH and LF measurements when R1.6 or R2 insert is used. |
Shipping Info
Package Weight
3.688
