TXN06R125M40.0E08
Indexable Face Mill; 125 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 1.5 mm LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 125 mm | Master Insert Identification (MIID) | LNMU06X5ZER-MJ |
| Cutting Diameter (DC) | 125 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 125 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 1.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | Fast Feed Endmill |
Product Features
| Family Description | Super high feed milling cutters with double sided inserts with 4 edges | Country of Origin | Japan |
Shipping Info
Package Weight
8.026
Related Documentation

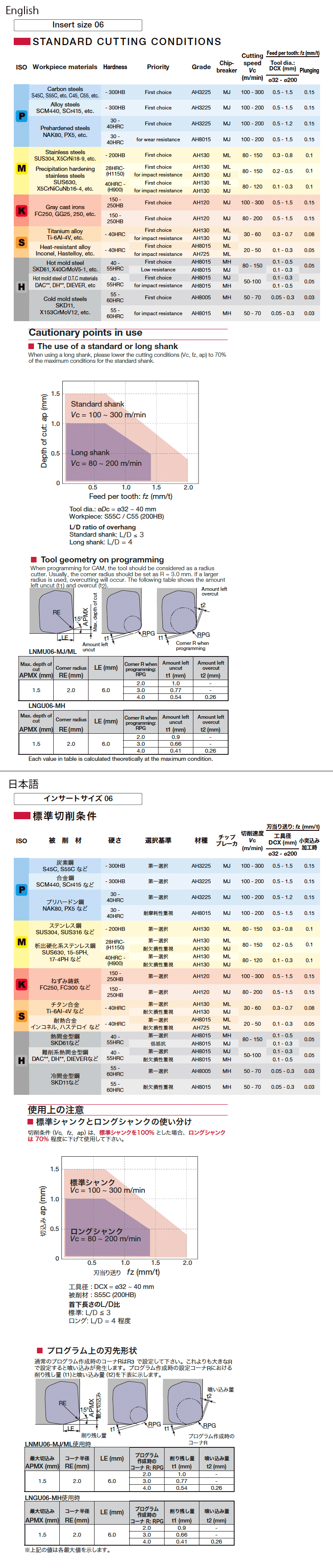

The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.@For DC above 100 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut.
