TFMRN563-22R-12FL

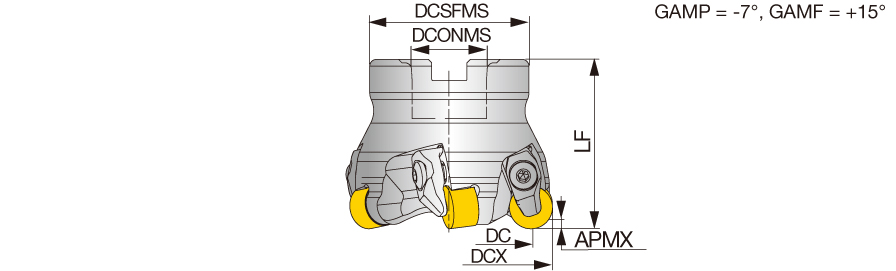

Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 2 mm LOC ; 5 Inserts
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | RNGN120700 |
| Cutting Diameter (DC) | 50.35 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face milling cutters for machining high temperature alloy; Bore type | Country of Origin | S.Korea |
