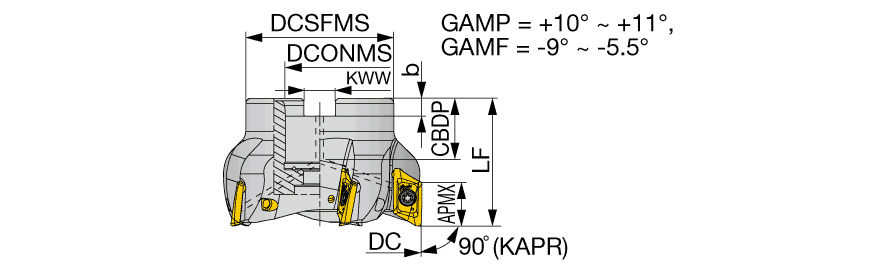

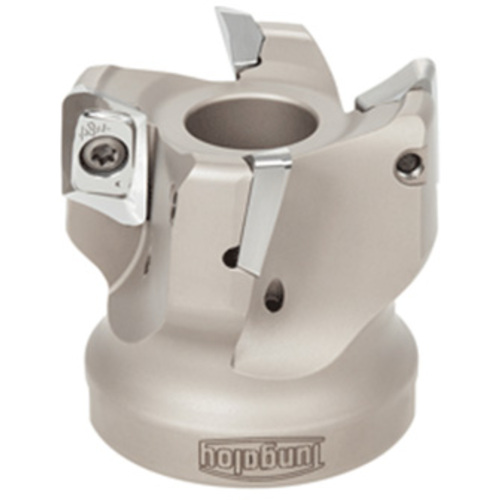

TPV16R400U0150A06
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2-1/2″ OAL × 0.63″ Max Depth ; 6 Inserts
| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | XVCT160508R-AJ |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.63″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2-1/2″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | 90 Facemills for Al. & HTA |
Product Features
| Family Description | 90 deg shoulder milling shellmills with screw clamped XVCT16 inserts for aluminum machining | Country of Origin | Japan |
| Remarks | Either XVCT AM inserts or XVCT AJ inserts can be used with a TPV/EPV cutter. DO NOT mix the XVCT AM and XVCT AJ inserts on the same cutter. The difference of the insert weights will deteriorate the dynamic balance of the tool, resulting in poor surface finish. |
