TPD05R150U0075A08

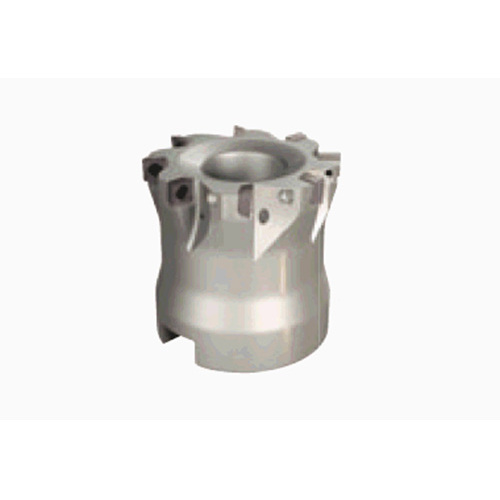

Indexable Face Mill; 1-1/2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.157″ LOC ; 8 Inserts

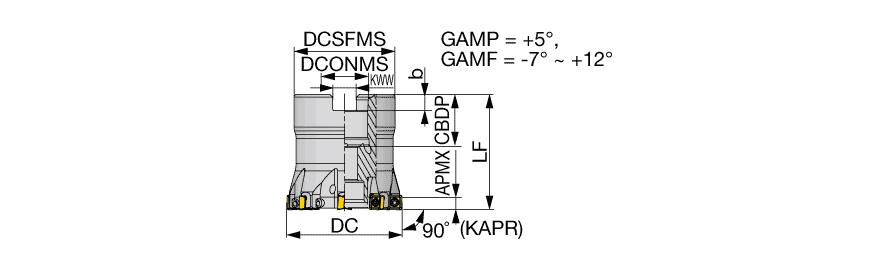

| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | SDMT050204PN-MJ |
| Cutting Diameter (DC) | 1-1/2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.157″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.57″ |
| Overall Length (OAL) | 1.57″ | Tool Type | 90 Facemills |
Product Features
| Family Description | Highly dense shoulder square mills with small SDMT05 inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.670
