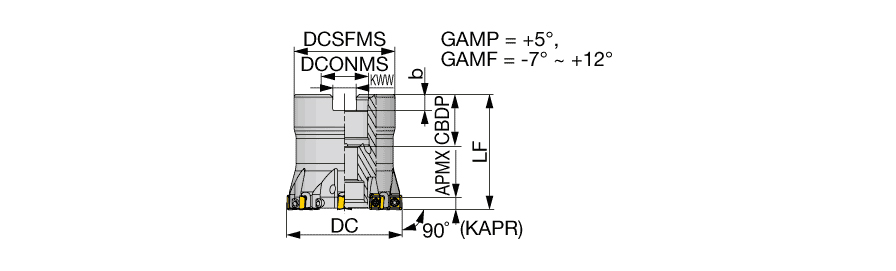

TPD05R032M16.0E06
Indexable Face Mill; 32 mm Dia. × 16 mm Shank Dia. × 32 mm OAL × 4 mm LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 32 mm | Master Insert Identification (MIID) | SDMT050204PN-MJ |
| Cutting Diameter (DC) | 32 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Length (LF) | 32 mm |
| Overall Length (OAL) | 32 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | Highly dense shoulder square mills with small SDMT05 inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.494
