TRC12R080M31.7-07

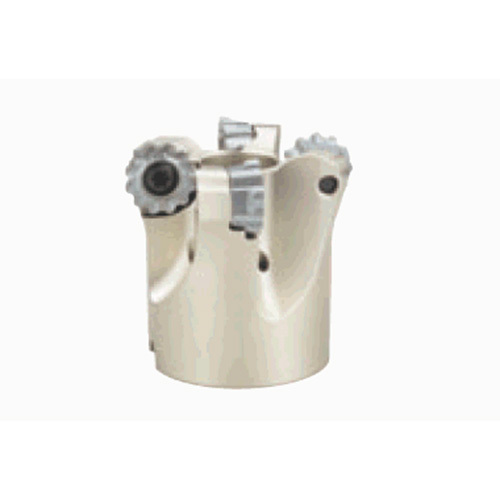

Indexable Face Mill; 80 mm Dia. × 31.75 mm Shank Dia. × 63 mm OAL × 6 mm LOC ; 7 Inserts

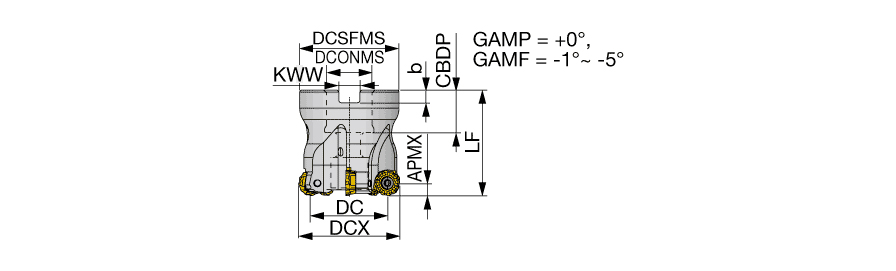

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | RCMT1204EN-NMJ |
| Cutting Diameter (DC) | 68 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 7 | Application | | Profile Milling | |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills with button insert of 8mm or 6mm radius | Country of Origin | GERMANY |
Shipping Info
Package Weight
3.909
