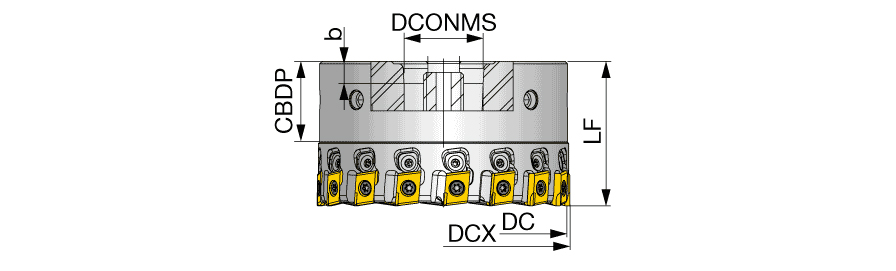

TPYP12M050B22.0R08
Indexable Face Mill; 51.4 mm Dia. × 22 mm Shank Dia. × 55 mm OAL × 4 mm LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 51.4 mm | Master Insert Identification (MIID) | YPEB12X3-1A01R-D |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 51.4 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 55 mm |
| Overall Length (OAL) | 55 mm |
Product Features
| Family Description | High speed milling cutter with PCD insert for non ferrous materials | Country of Origin | Italy |
| Remarks | DCX: Outside diameter DC: diameter with 01 type insert |
Shipping Info
Package Weight
0
