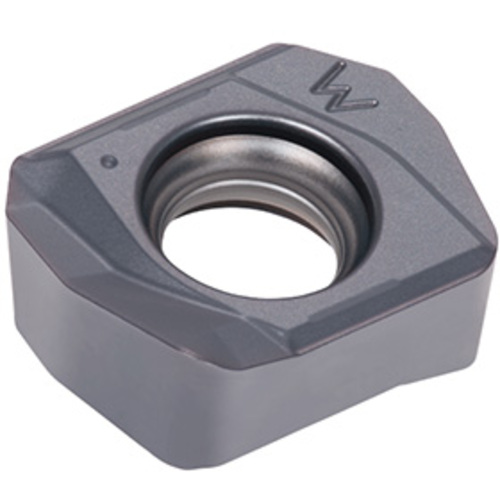

LNGU06X5ZER-W AH725
Milling Insert; LNGU06X5ZER-W AH725 AH725 × 0.472″ Width × 0.276″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH725 |
| Application | | High Feed Milling | | Maximum Feed per Tooth (fz(max)) | 0.059 in/tooth |

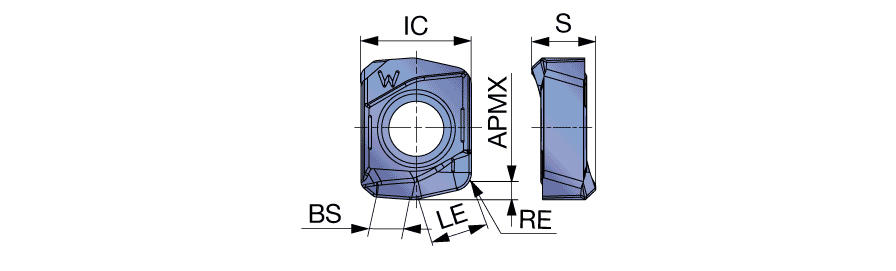

| Corner Radius (RE) | 0.0787″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.0197 in/tooth |
| Insert Width (W1) | 0.472″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 0.472″ | Cutting Edge Effective Length (LE) | 0.236″ |
| Insert Thickness (S) | 0.276″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.142″ | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Double sided insert with 2 wiper edges | Country of Origin | Japan |
Shipping Info
Package Weight
0.025
