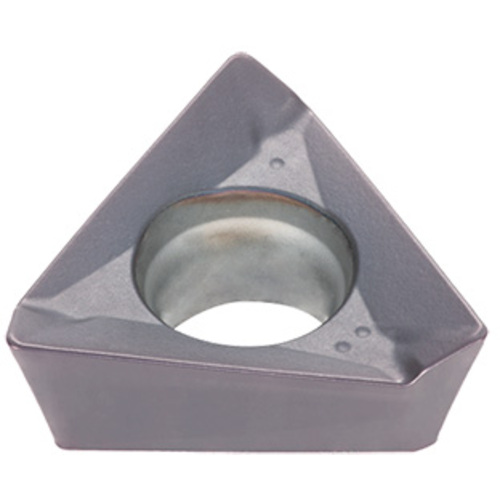

TOMT100408PDER-MJ AH3135
Milling Insert; TOMT100408PDER-MJ AH3135 AH3135 × 0.185″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

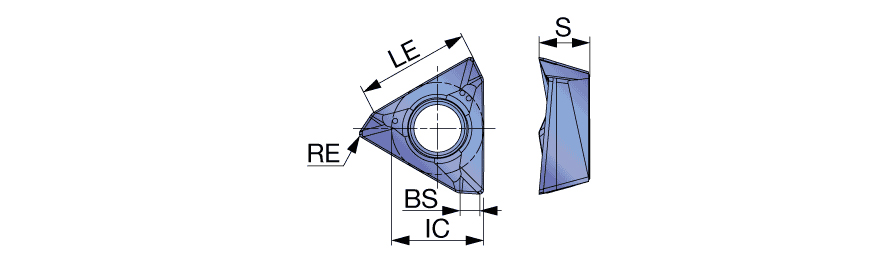

| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 10 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Inscribed Circle Diameter (IC) | 8.6 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 4.7 mm | Cutting Edge Effective Length (LE) | 10.5 mm |
| Wiper Edge Length (BS) | 1.1 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH3135 |
Product Features
| Family Description | High performance insert with MJ chipbreaker for general purpose | Country of Origin | Japan |
Shipping Info
Package Weight
0.008
