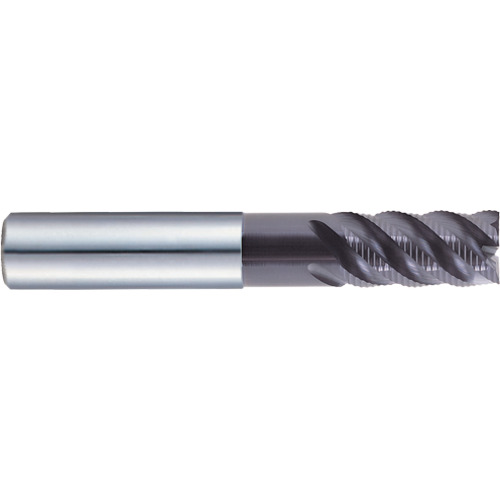

Square End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; TiAlN ; Series EH921
| Cutting Diameter (DC) | 10 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Neck Diameter (DN) | 9.5 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Length Group | Long Reach |
| Overall Length (OAL) | 72 mm | Flute Type | Roughing |
| Cutting Edge Material | Carbide | Style | Square End 45 Degrees Helix Long Length Fine Pitch Roughing |
| Coating | TiAlN | Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | EH921 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
| Usable Length (LU) | 22 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.1625
