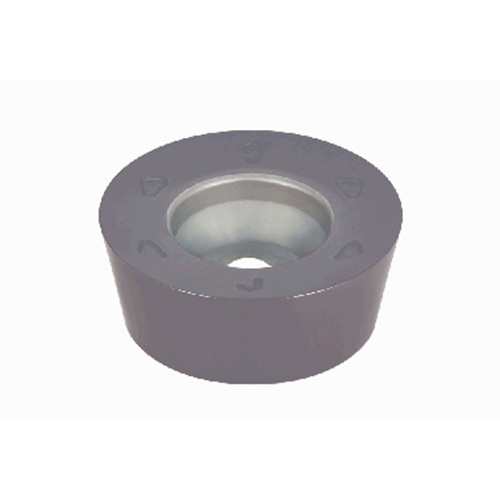

RPMT1204EN-MJ AH130
Milling Insert; RPMT1204EN-MJ AH130 AH130 × 0.187″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0276 in/tooth |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |

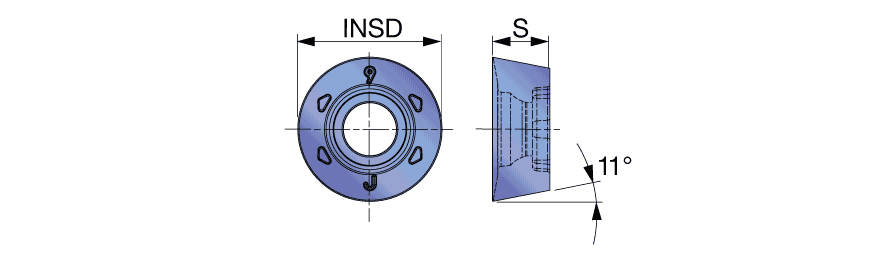

| Corner Radius (RE) | 0.2362″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0079 in/tooth |
| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH130 |
Product Features
| Family Description | Round insert with Anti-Rotation System. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.123
