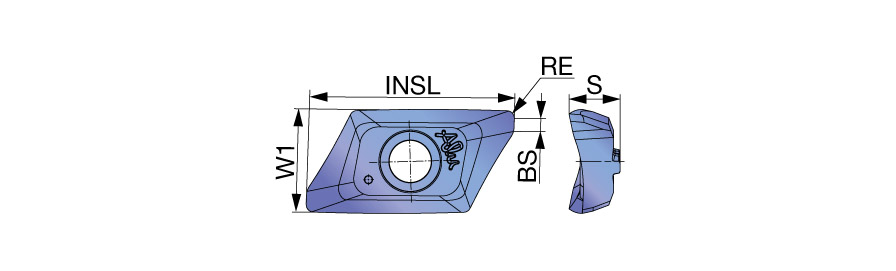

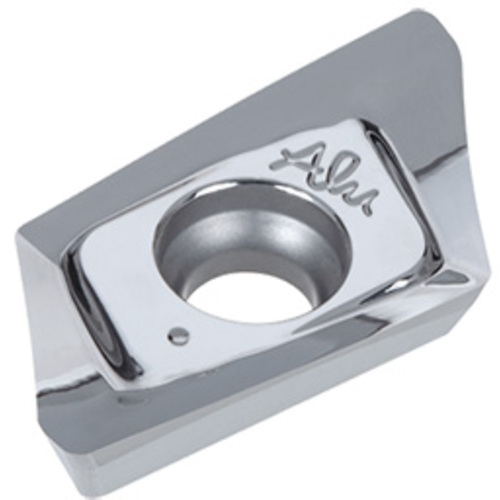

XVCT160512PEFR-AM TH10
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | TH10 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0138 in/tooth |
| Insert Length (INSL) | 0.858″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.63″ | Minimum Feed per Tooth (fz(min)) | 0.0027 in/tooth |
| Insert Width (W1) | 0.441″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.217″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.043″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Insert with AM chipbreaker for aluminum machining | Country of Origin | S.Korea |
| Remarks | XVCT AM inserts can be used either with a TPXV/EPXV cutter or TPV/EPV cutter. |
