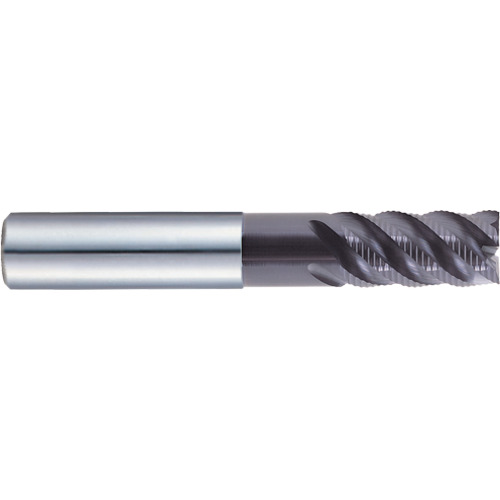

3/4 6FL ROUGHING END
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4-3/8″ OAL ; 6 FL ; Carbide ; TiAlN ; Series EH970
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Neck Diameter (DN) | 0.719″ |
| Overall Length (OAL) | 4-3/8″ | Length Group | Long Reach |
| Cutting Edge Material | Carbide | Flute Type | Roughing |
| Coating | TiAlN | Style | Square End 45 Degrees Helix Long Length Fine Pitch Roughing |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | EH970 |
| End Shape | Square | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-5/8″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.125
Package Width
1.25
Package Height
1.25
Package Weight
0.875
