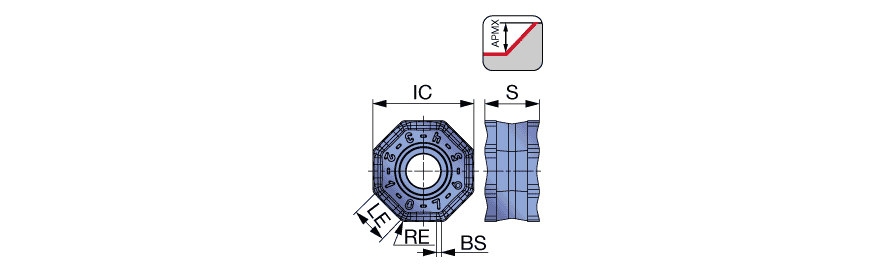

| Applicable Material | | Steel | Stainless Steel | | Grade | AH3225 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |
| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.134″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.512″ | Number of Cutting Edges | 16 |
| Insert Thickness (S) | 0.276″ | Cutting Edge Effective Length (LE) | 0.193″ |
| Wiper Edge Length (BS) | 0.028″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
Product Features

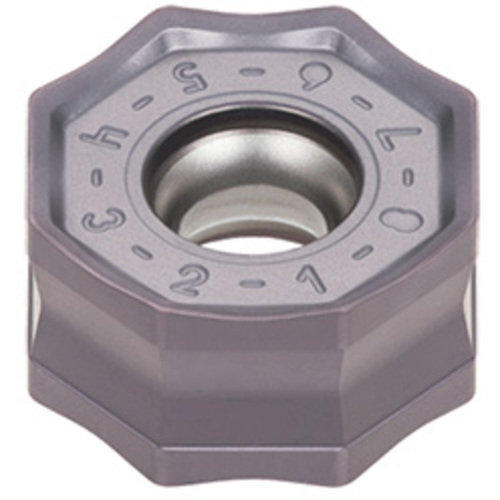

| Family Description | Double-sided octagonal inserts, G class, with 16 edges and MJ chipbreaker | Country of Origin | Japan |
