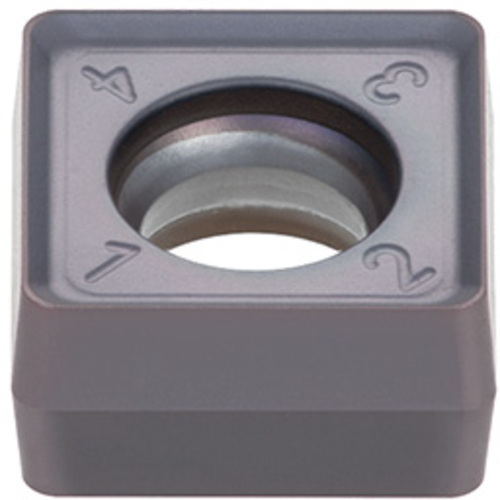

SXHU100408EN-MM AH130
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | AH130 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

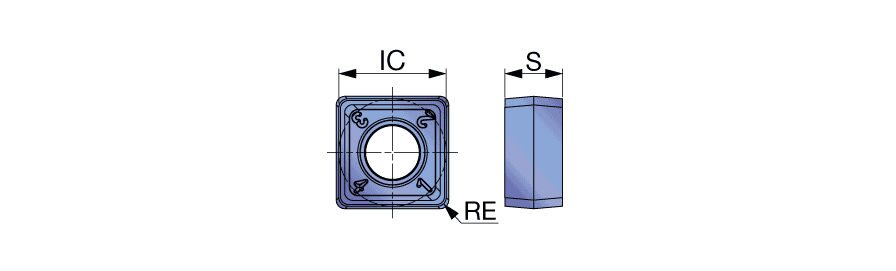

| Corner Radius (RE) | 0.0315″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.394″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.212″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | ExtendedForceMill, peripheral insert, 1st recommended for titanium alloy and cast iron parts | Country of Origin | Japan |
Shipping Info
Package Weight
6.4
Related Documentation
[Insert Positioning] @Mount the AXHU inserts on the bottom pockets marked with the matching "A" sign on the cutter body. @On the remaining peripheral pockets, install the SXHU inserts. @[Check points] @Ensure the following two points for the correct installation of the bottom inserts: @(1) The bottom inserts have a flat flank surface with NO protruded line. @(2) An "A" sign appears on the rake surface of the bottom inserts.
