1/2 4FL LONG RGHG END

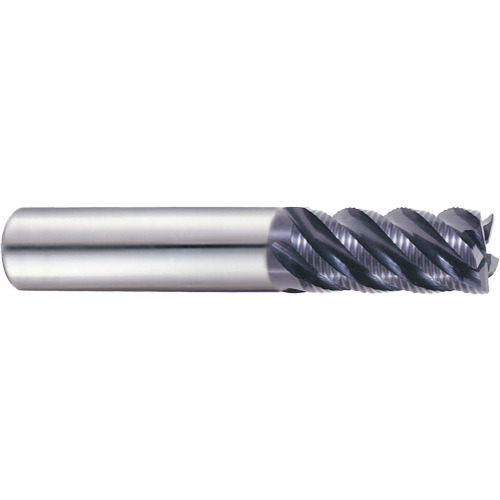

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; TiAlN ; Series EH969
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Length Group | Long |
| Depth of Cut Maximum (APMX) | 1″ | Flute Type | Roughing |
| Overall Length (OAL) | 3″ | Style | Square End 45 Degrees Helix Long Length Fine Pitch Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | EH969 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.267
